The Sonnoc SNP-U100L is the top-tier flagship DLP laser engineering projector in Sonnoc’s Pioneer series, a 10,000-lumen upgrade of the U80L, featuring ultra-high 10k+ lumens, 0.67” large DMD, flagship motorized lens, full-range interchangeable lens, 720° installation, dual light source backup, 24/7 stable operation, making it the top main model for large venues, stage performances, outdoor projection shows, immersive cinemas, museums, command centers, cultural tourism lighting.
Equipped with a 0.67” DMD chip, native WUXGA (1920×1200) resolution (16:10 wide screen), compatible with 4K signals (up to 4096×2160), delivering sharp text and clear details. 10500 ISO lumens (center 11000lm) ensures bright, clear 500” ultra-large screens even in daylight. 3,000,000:1 dynamic contrast provides deep blacks and rich layers. Supports HDR10 (4 modes), 3D, HSG color management with independent adjustment of 7 primary colors (R/G/B/C/Y/M/W) for accurate, vibrant colors.
Motorized lens (standard): 1.44~2.32:1 throw ratio, 1.6× motorized zoom projects 100” at 3.2~5.2m; motorized lens shift (V ±60%, H ±30%) with 5 lens memory presets + lens lock + 0.5-pixel shift accuracy offers high installation tolerance without frequent adjustments. 6 optional interchangeable lenses supported (ultra-short/short/standard/long/prime/ultra-long) cover 0.38~7.2:1 ultra-wide throw ratio, fitting all scenarios from 50” small meetings to 500” ultra-large stages.
| 项目 Item | 中文规格 | English Specification |
|---|---|---|
| 型号 Model | SNP-U100L | SNP-U100L |
| 显示技术 | DLP 激光（0.67” DMD） | DLP Laser (0.67” DMD) |
| 分辨率 | WUXGA 1920×1200（16:10）兼容 4K | WUXGA 1920×1200 (16:10) 4K Compatible |
| 亮度 | 10500 ISO 流明（中心 11000 流明） | 10500 ISO Lumens (Center 11000lm) |
| 投射比 | 1.44~2.32:1（1.6 倍电动变焦） | 1.44~2.32:1 (1.6× Motorized Zoom) |
| 100 寸距离 | 约 3.2~5.2 米 | Approx. 3.2~5.2m |
| 镜头位移 | 垂直 ±60%；水平 ±30%（电动，精度 0.5 像素） | V ±60%; H ±30% (Motorized, 0.5-Pixel Accuracy) |
| 可换镜头 | 支持 6 款（超短焦 / 短焦 / 标准 / 长焦 / 定焦 / 超长焦） | 6 Optional (Ultra-Short/Short/Standard/Long/Prime/Ultra-Long) |
| 对比度 | 3,000,000:1（动态） | 3,000,000:1 (Dynamic) |
| 光源 | 双 MCL 激光模组 | Dual MCL Laser Module |
| 光源寿命 | 20000h (标准)/30000h (节能) | 20,000hrs(Normal)/30,000hrs(Eco) |
| 光源备份 | 双光源备份（任一故障仍正常显示） | Dual Light Source Backup (Normal Display with One Laser Failed) |
| 校正 | 四角、曲面、十六点校正 | 4-Corner, Curved, 16-Point Correction |
| 安装 | 720° 自由旋转（正投 / 背投 / 吊顶） | 720° Free Rotation (Front/Rear/Ceiling) |
| 防尘 | IP5X 过滤网 | IP5X Dust Filter |
| 接口 | HDMI×2、DVI、VGA、USB-A、RJ45、RS232、音频入 / 出 | HDMI×2, DVI, VGA, USB-A, RJ45, RS232, Audio In/Out |
| 扬声器 | 10W×2 | 10W×2 |
| 尺寸 | 486×393×174 mm | 486×393×174 mm |
| 净重 | 约 9.2 kg（不含镜头≤14kg） | Approx. 9.2kg (≤14kg Without Lens) |
Dual MCL laser diode module: 20,000hrs (normal) / 30,000hrs (eco) lifespan, slow brightness decay for long-term stability. Built-in dual light source backup technology ensures normal display even if one laser fails, supporting 24/7 continuous operation. IP5X dustproof reduces maintenance.

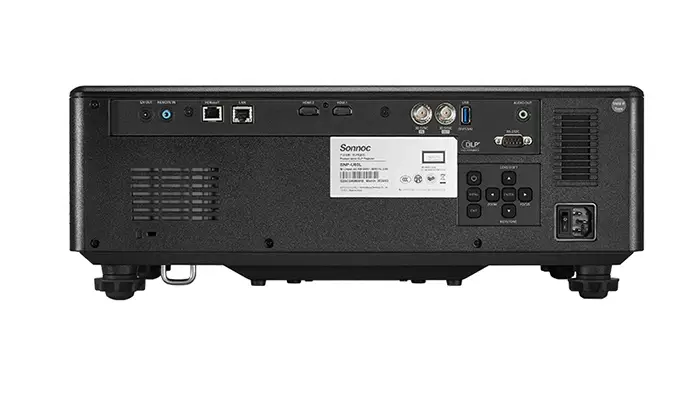

Rich interfaces: HDMI×2, DVI, VGA, USB-A, RJ45, RS232, audio in/out, supporting HDBaseT (optional), wireless casting (optional), 4-corner/curved/16-point correction for complex fusion and irregular screens. 720° free rotation installation with built-in orientation sensor automatically identifies front/rear/ceiling projection, adapting to any angle: ceiling, floor, side, vertical.
Sleek black design, low noise (40dB normal / 34dB eco), stable cooling. 2×10W speakers deliver loud, clear sound. Widely used in large stadiums, exhibition centers, stage theaters, museums, immersive cinemas, curved/spherical fusion, outdoor projection shows, cultural tourism lighting, command centers, security monitoring.
Supports B2B bulk purchasing and customization (boot logo/packaging/functions). Provides professional engineering solutions, OEM/ODM, stable supply and technical support to help integrators implement large projects efficiently.
